| F
A C T S |
| Load
Characteristics |
Fx
(N) |
Fy
(N) |
Fz
(N) |
kax
(µrad/Nm) |
kay
(µrad/Nm) |
kaz
(µrad/Nm) |
LM-005  |
2.5 |
5 |
-*2.5 |
0.1 |
0.1 |
0.1 |
| D
E S C R I P T I O N

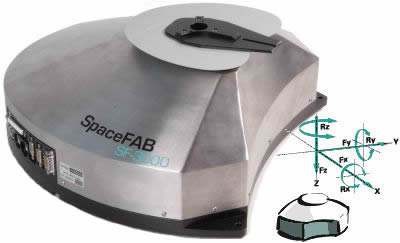

With
one SpaceFAB SF-3000 all six degrees
of freedom can be moved without additional
positioning elements. The low dead
weight of the moving platform allows high-dynamic
and
precise positioning processes. SpaceFAB
SF-3000 was especially developed for applications
in fiber- optic alignment. Furthermore SpaceFAB
SF-3000 is perfectly designed for fiber-fiber,
fiber- waveguide and fiber- laser diode alignments.
SpaceFAB SF-3000 are driven by high speed,
backlash-free linear motors with a very quiet
and dynamic
smooth move. Using a controller a linear resolution
up to 20 nm can be achieved. This system is
equipped with turnkey drive and control electronics.
With additionally integrated vision systems
a complete turnkey sytem can be offered. SpaceFAB
SF-3000 turnkey system is based on industrial
PC, Pmac Controller and MICOS linear motor
drive. Ideal in combination with other MICOS
stages.
|
|
|
S
O F T W A R E
|
| Calculation
of one motion path with collision detection
|
| Random
Definition of the Pivot Point inside
or outside of the system
|
| Graphic
display of the robot from any view in
multiple windows
|
| Digital
display of position and orientation
|
| Control
in absolute-, flange- or tool coordination
system
|
| Control
by Macro-language stored in own editor
|
| Control
by 6D-space-mouse possible
|
|
| Technical
data |
| Travel
Range |
| X,
Y (mm) |
25.4
x 25.4
|
| Z
(mm) |
12.7
|
| Rx,
Ry (°) |
10
|
| Rz
(°) |
10
|
| Velocity
Range (mm/sec) |
0.01
... 100
|
| Velocity
Range (°/sec) |
0.001
... 50
|
|
| Bi-directional
Repeatability (µm) |
|
| X,
Y |
+/-
0.5
|
| Z |
+/-
0.5
|
|
| Bi-directional
Repeatability (µrad) |
|
| Rx,
Ry |
+/-
10
|
| Rz |
+/-
10
|
|
| Speed
max. |
|
| LM-005 |
|
| X,
Y (mm/sec) |
100
|
| Z
(mm/sec) |
100
|
| Rx,
Ry (°/sec) |
50
|
| Rz
(°/sec) |
50
|
|
| Material |
|
| Weight
(kg) |
-*
|
|
Note: Fore
more detailed informations, please contact us.
For turned key solutions, please contact us.
|
|
